Lighthouse AI Architecture

This document describes the internal architecture of Prowler Lighthouse AI, enabling developers to understand how components interact and where to add new functionality.

Looking for user documentation? See:

• Lighthouse AI Overview - Capabilities and FAQs
• How Lighthouse AI Works - Configuration and usage
• Multi-LLM Provider Setup - Provider configuration

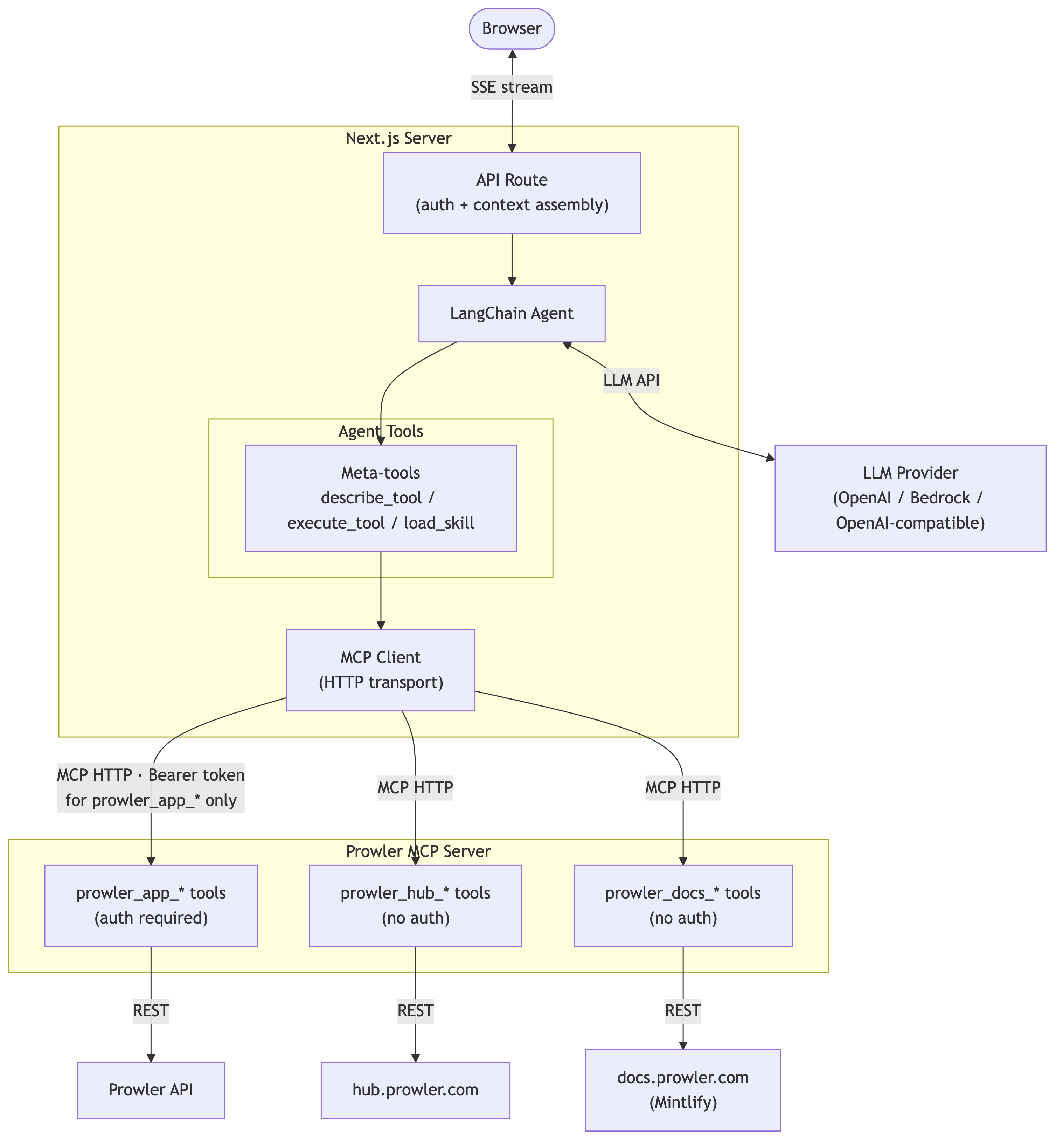

Architecture Overview

Lighthouse AI operates as a Langchain-based agent that connects Large Language Models (LLMs) with Prowler security data through the Model Context Protocol (MCP).

Three-Tier Architecture

The system follows a three-tier architecture:

1. Frontend (Next.js): Chat interface, message rendering, model selection
2. API Route: Request handling, authentication, stream transformation
3. Langchain Agent: LLM orchestration, tool calling through MCP

Request Flow

When a user sends a message through the Lighthouse chat interface, the system processes it through several stages:

1. User Submits a Message. The chat component (ui/components/lighthouse/chat.tsx) captures the user’s question (e.g., “What are my critical findings in AWS?”) and sends it as an HTTP POST request to the backend API route.

2. Authentication and Context Assembly. The API route (ui/app/api/lighthouse/analyst/route.ts) validates the user’s session, extracts the JWT token (stored via auth-context.ts), and gathers context including the tenant’s business context and current security posture data (assembled in data.ts).

3. Agent Initialization. The workflow orchestrator (ui/lib/lighthouse/workflow.ts) creates a Langchain agent configured with:

   • The selected LLM, instantiated through the factory (llm-factory.ts)
   • A system prompt containing available tools and instructions (system-prompt.ts)
   • Two meta-tools (describe_tool and execute_tool) for accessing Prowler data

4. LLM Reasoning and Tool Calling. The agent sends the conversation to the LLM, which decides whether to respond directly or call tools to fetch data. When tools are needed, the meta-tools in ui/lib/lighthouse/tools/meta-tool.ts interact with the MCP client (mcp-client.ts) to:

   • First call describe_tool to understand the tool’s parameters
   • Then call execute_tool to retrieve data from the MCP Server
   • Continue reasoning with the returned data

5. Streaming Response. As the LLM generates its response, the stream handler (ui/lib/lighthouse/analyst-stream.ts) transforms Langchain events into UI-compatible messages and streams tokens back to the browser in real-time using Server-Sent Events. The stream includes both text tokens and tool execution events (displayed as “chain of thought”).

6. Message Rendering. The frontend receives the stream and renders it through message-item.tsx with markdown formatting. Any tool calls that occurred during reasoning are displayed via chain-of-thought-display.tsx.

Frontend Components

Frontend components reside in ui/components/lighthouse/ and handle the chat interface and configuration workflows.

Core Components

Component	Location	Purpose
chat.tsx	ui/components/lighthouse/	Main chat interface managing message history and input handling
message-item.tsx	ui/components/lighthouse/	Individual message rendering with markdown support
select-model.tsx	ui/components/lighthouse/	Model and provider selection dropdown
chain-of-thought-display.tsx	ui/components/lighthouse/	Displays tool calls and reasoning steps during execution

Configuration Components

Component	Location	Purpose
lighthouse-settings.tsx	ui/components/lighthouse/	Settings panel for business context and preferences
connect-llm-provider.tsx	ui/components/lighthouse/	Provider connection workflow
llm-providers-table.tsx	ui/components/lighthouse/	Provider management table
forms/delete-llm-provider-form.tsx	ui/components/lighthouse/forms/	Provider deletion confirmation dialog

Supporting Components

Component	Location	Purpose
banner.tsx / banner-client.tsx	ui/components/lighthouse/	Status banners and notifications
workflow/	ui/components/lighthouse/workflow/	Multi-step configuration workflows
ai-elements/	ui/components/lighthouse/ai-elements/	Custom UI primitives for chat interface (input, select, dropdown, tooltip)

Library Code

Core library code resides in ui/lib/lighthouse/ and handles agent orchestration, MCP communication, and stream processing.

Workflow Orchestrator

Location: ui/lib/lighthouse/workflow.ts

The workflow module serves as the core orchestrator, responsible for:

• Initializing the Langchain agent with system prompt and tools
• Loading tenant configuration (default provider, model, business context)
• Creating the LLM instance through the factory
• Generating dynamic tool listings from available MCP tools

// Simplified workflow initialization
export async function initLighthouseWorkflow(runtimeConfig?: RuntimeConfig) {
  await initializeMCPClient();

  const toolListing = generateToolListing();
  const systemPrompt = LIGHTHOUSE_SYSTEM_PROMPT_TEMPLATE.replace(
    "{{TOOL_LISTING}}",
    toolListing,
  );

  const llm = createLLM({
    provider: providerType,
    model: modelId,
    credentials,
    // ...
  });

  return createAgent({
    model: llm,
    tools: [describeTool, executeTool],
    systemPrompt,
  });
}

MCP Client Manager

Location: ui/lib/lighthouse/mcp-client.ts

The MCP client manages connections to the Prowler MCP Server using a singleton pattern:

• Connection Management: Retry logic with configurable attempts and delays
• Tool Discovery: Fetches available tools from MCP server on initialization
• Authentication Injection: Automatically adds JWT tokens to prowler_* tool calls
• Reconnection: Supports forced reconnection after server restarts

Key constants:

• MAX_RETRY_ATTEMPTS: 3 connection attempts
• RETRY_DELAY_MS: 2000ms between retries
• RECONNECT_INTERVAL_MS: 5 minutes before retry after failure

// Authentication injection for core prowler_ tools (Hub/Docs excluded)
private handleBeforeToolCall = ({ name, args }) => {
  // Only inject auth for prowler_* tools (user-specific data).
  // The legacy prowler_app_ prefix is also accepted for a resilient rollout.
  if (
    !name.startsWith("prowler_") &&
    !name.startsWith("prowler_app_")
  ) {
    return { args };
  }

  const accessToken = getAuthContext();
  return {
    args,
    headers: { Authorization: `Bearer ${accessToken}` },
  };
};

Meta-Tools

Location: ui/lib/lighthouse/tools/meta-tool.ts

Instead of registering all MCP tools directly with the agent, Lighthouse uses two meta-tools for dynamic tool discovery and execution:

Tool	Purpose
describe_tool	Retrieves full schema and parameter details for a specific tool
execute_tool	Executes a tool with provided parameters

This pattern reduces the number of tools the LLM must track while maintaining access to all MCP capabilities.

Additional Library Modules

Module	Location	Purpose
analyst-stream.ts	ui/lib/lighthouse/	Transforms Langchain stream events to UI message format
llm-factory.ts	ui/lib/lighthouse/	Creates LLM instances for OpenAI, Bedrock, and OpenAI-compatible providers
system-prompt.ts	ui/lib/lighthouse/	System prompt template with dynamic tool listing injection
auth-context.ts	ui/lib/lighthouse/	AsyncLocalStorage for JWT token propagation across async boundaries
types.ts	ui/lib/lighthouse/	TypeScript type definitions
constants.ts	ui/lib/lighthouse/	Configuration constants and error messages
utils.ts	ui/lib/lighthouse/	Message conversion and model parameter extraction
validation.ts	ui/lib/lighthouse/	Input validation utilities
data.ts	ui/lib/lighthouse/	Current data section generation for context enrichment

API Route

Location: ui/app/api/lighthouse/analyst/route.ts

The API route handles chat requests and manages the streaming response pipeline:

1. Request Parsing: Extracts messages, model, and provider from request body
2. Authentication: Validates session and extracts access token
3. Context Assembly: Gathers business context and current data
4. Agent Initialization: Creates Langchain agent with runtime configuration
5. Stream Processing: Transforms agent events to UI-compatible format
6. Error Handling: Captures errors with Sentry integration

export async function POST(req: Request) {
  const { messages, model, provider } = await req.json();

  const session = await auth();
  if (!session?.accessToken) {
    return Response.json({ error: "Unauthorized" }, { status: 401 });
  }

  return await authContextStorage.run(accessToken, async () => {
    const app = await initLighthouseWorkflow(runtimeConfig);
    const agentStream = app.streamEvents({ messages }, { version: "v2" });

    // Transform stream events to UI format
    const stream = new ReadableStream({
      async start(controller) {
        for await (const streamEvent of agentStream) {
          // Handle on_chat_model_stream, on_tool_start, on_tool_end, etc.
        }
      },
    });

    return createUIMessageStreamResponse({ stream });
  });
}

Backend Components

Backend components handle LLM provider configuration, model management, and credential storage.

Database Models

Location: api/src/backend/api/models.py

Model	Purpose
LighthouseProviderConfiguration	Per-tenant LLM provider credentials (encrypted with Fernet)
LighthouseTenantConfiguration	Tenant-level settings including business context and default provider/model
LighthouseProviderModels	Available models per provider configuration

All models implement Row-Level Security (RLS) for tenant isolation.

LighthouseProviderConfiguration

Stores provider-specific credentials for each tenant:

• provider_type: openai, bedrock, or openai_compatible
• credentials: Encrypted JSON containing API keys or AWS credentials
• base_url: Custom endpoint for OpenAI-compatible providers
• is_active: Connection validation status

LighthouseTenantConfiguration

Stores tenant-wide Lighthouse settings:

• business_context: Optional context for personalized responses
• default_provider: Default LLM provider type
• default_models: JSON mapping provider types to default model IDs

LighthouseProviderModels

Catalogs available models for each provider:

• model_id: Provider-specific model identifier
• model_name: Human-readable display name
• default_parameters: Optional model-specific parameters

Background Jobs

Location: api/src/backend/tasks/jobs/lighthouse_providers.py

check_lighthouse_provider_connection

Validates provider credentials by making a test API call:

• OpenAI: Lists models via client.models.list()
• Bedrock: Lists foundation models via bedrock_client.list_foundation_models()
• OpenAI-compatible: Lists models via custom base URL

Updates is_active status based on connection result.

refresh_lighthouse_provider_models

Synchronizes available models from provider APIs:

• Fetches current model catalog from provider
• Filters out non-chat models (DALL-E, Whisper, TTS, embeddings)
• Upserts model records in LighthouseProviderModels
• Removes stale models no longer available

Excluded OpenAI model prefixes:

EXCLUDED_OPENAI_MODEL_PREFIXES = (
    "dall-e", "whisper", "tts-", "sora",
    "text-embedding", "text-moderation",
    # Legacy models
    "text-davinci", "davinci", "curie", "babbage", "ada",
)

MCP Server Integration

Lighthouse AI communicates with the Prowler MCP Server to access security data. For detailed MCP Server architecture, see Extending the MCP Server.

Tool Namespacing

MCP tools are organized into three namespaces based on authentication requirements:

Namespace	Auth Required	Description
prowler_*	Yes (JWT)	Prowler Cloud, Prowler Private Cloud, and Prowler Local Server tools for findings, providers, scans, resources
prowler_hub_*	No	Security checks catalog, compliance frameworks
prowler_docs_*	No	Documentation search and retrieval

Authentication Flow

1. User authenticates with Prowler Local Server, receiving a JWT token
2. Token is stored in session and propagated via authContextStorage
3. MCP client injects Authorization: Bearer <token> header for prowler_* calls
4. MCP Server validates token and applies RLS filtering

Tool Execution Pattern

The agent uses meta-tools rather than direct tool registration:

Agent needs data → describe_tool("prowler_search_findings")
    → Returns parameter schema → execute_tool with parameters
    → MCP client adds auth header → MCP Server executes
    → Results returned to agent → Agent continues reasoning

Extension Points

Adding New LLM Providers

To add a new LLM provider:

1. Frontend: Update ui/lib/lighthouse/llm-factory.ts with provider-specific initialization
2. Backend: Add provider type to LighthouseProviderConfiguration.LLMProviderChoices
3. Jobs: Add credential extraction and model fetching in lighthouse_providers.py
4. UI: Add connection workflow in ui/components/lighthouse/workflow/

Modifying System Prompt

The system prompt template lives in ui/lib/lighthouse/system-prompt.ts. The {{TOOL_LISTING}} placeholder is dynamically replaced with available MCP tools during agent initialization.

Adding Stream Events

To handle new Langchain stream events, modify ui/lib/lighthouse/analyst-stream.ts. Current handlers include:

• on_chat_model_stream: Token-by-token text streaming
• on_chat_model_end: Model completion with tool call detection
• on_tool_start: Tool execution started
• on_tool_end: Tool execution completed

Adding MCP Tools

See Extending the MCP Server for detailed instructions on adding new tools to the Prowler MCP Server.

Configuration

Environment Variables

Variable	Description
PROWLER_MCP_SERVER_URL	MCP server endpoint (e.g., https://mcp.prowler.com/mcp)

Database Configuration

Provider credentials are stored encrypted in LighthouseProviderConfiguration:

• OpenAI: {"api_key": "sk-..."}
• Bedrock: {"access_key_id": "...", "secret_access_key": "...", "region": "us-east-1"} or {"api_key": "...", "region": "us-east-1"}
• OpenAI-compatible: {"api_key": "..."} with base_url field

Tenant Configuration

Business context and default settings are stored in LighthouseTenantConfiguration:

{
    "business_context": "Optional organization context for personalized responses",
    "default_provider": "openai",
    "default_models": {
        "openai": "gpt-4o",
        "bedrock": "anthropic.claude-3-5-sonnet-20240620-v1:0"
    }
}

Related Documentation

MCP Server Extension

Adding new tools to the Prowler MCP Server

Lighthouse AI Overview

Capabilities, FAQs, and limitations

Multi-LLM Setup

Configuring multiple LLM providers

How Lighthouse Works

User-facing architecture and setup guide
